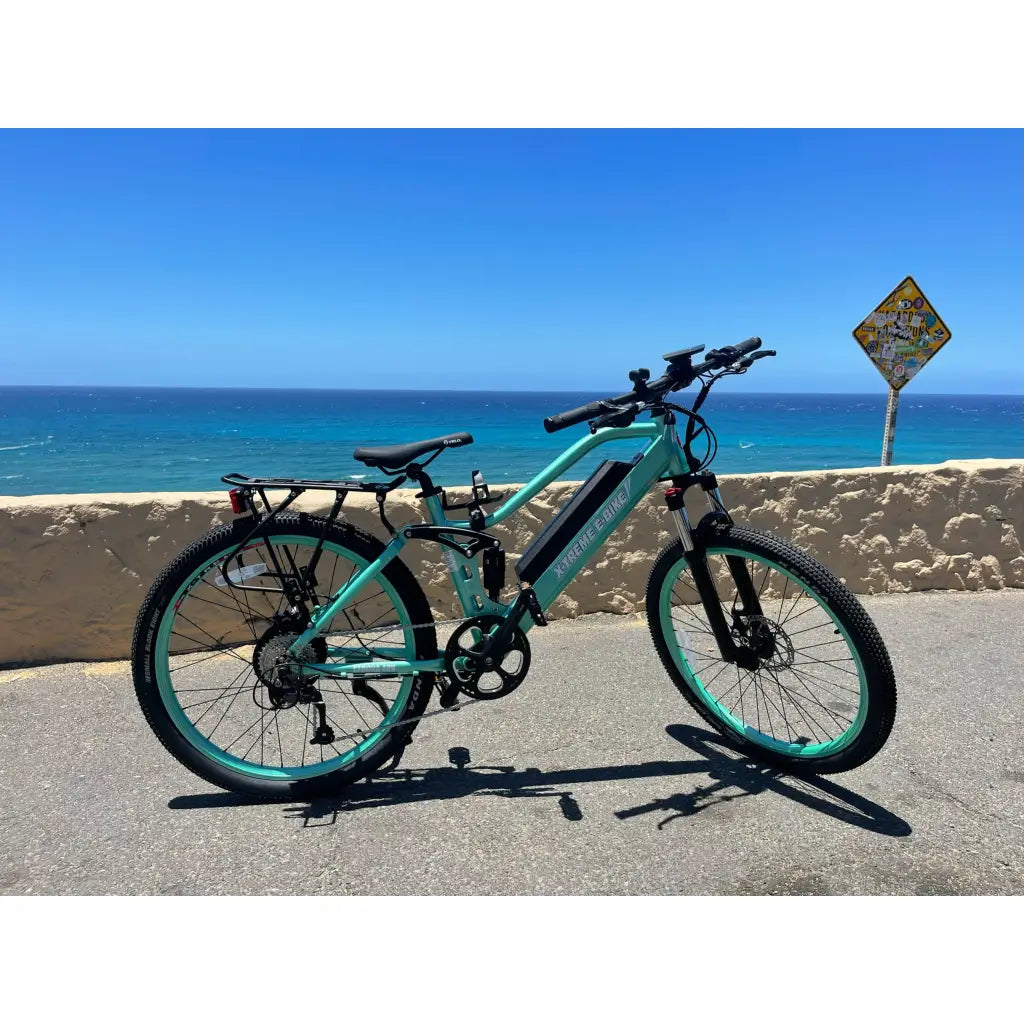

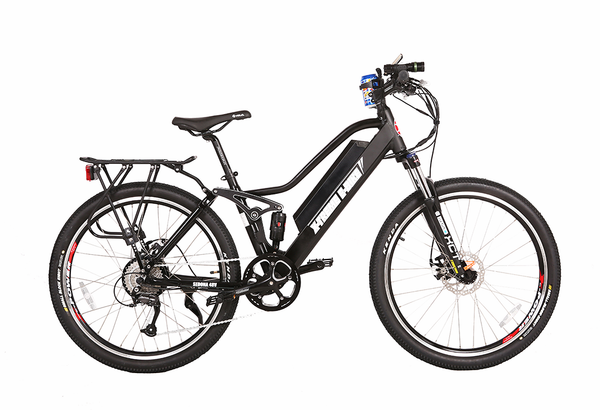

Sedona 48 Volt Step-Through Frame Electric Mountain Bicycle

$1,499.00 Sale Save
FREE Shipping
Delivery: 2-7 Days
Questions?
Contact a X-treme Expert: 1-866-485-3223
Color Black

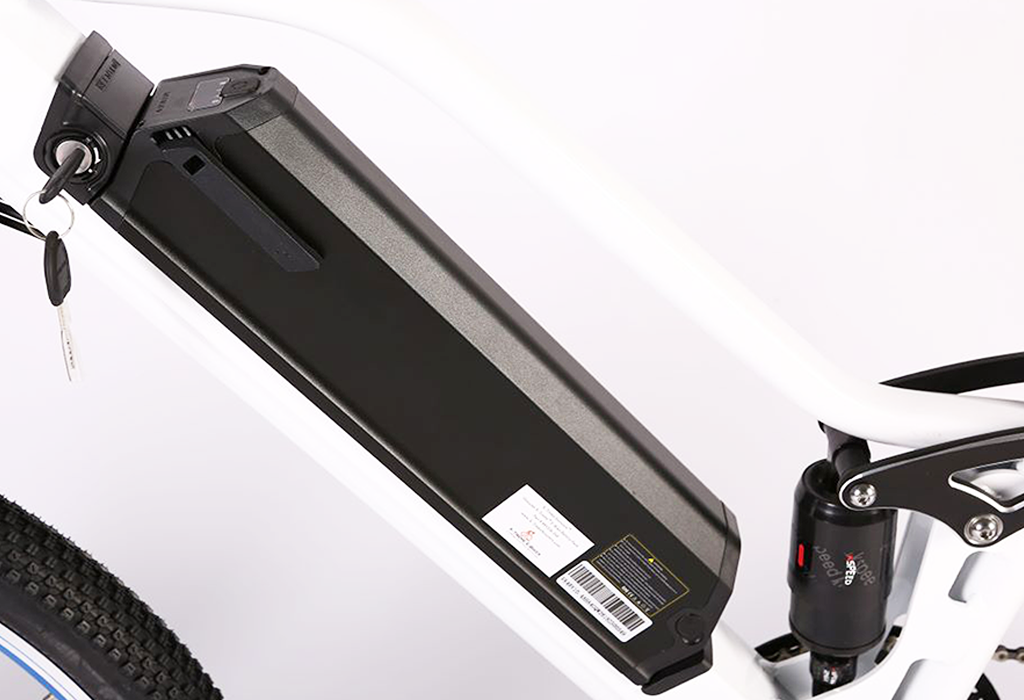

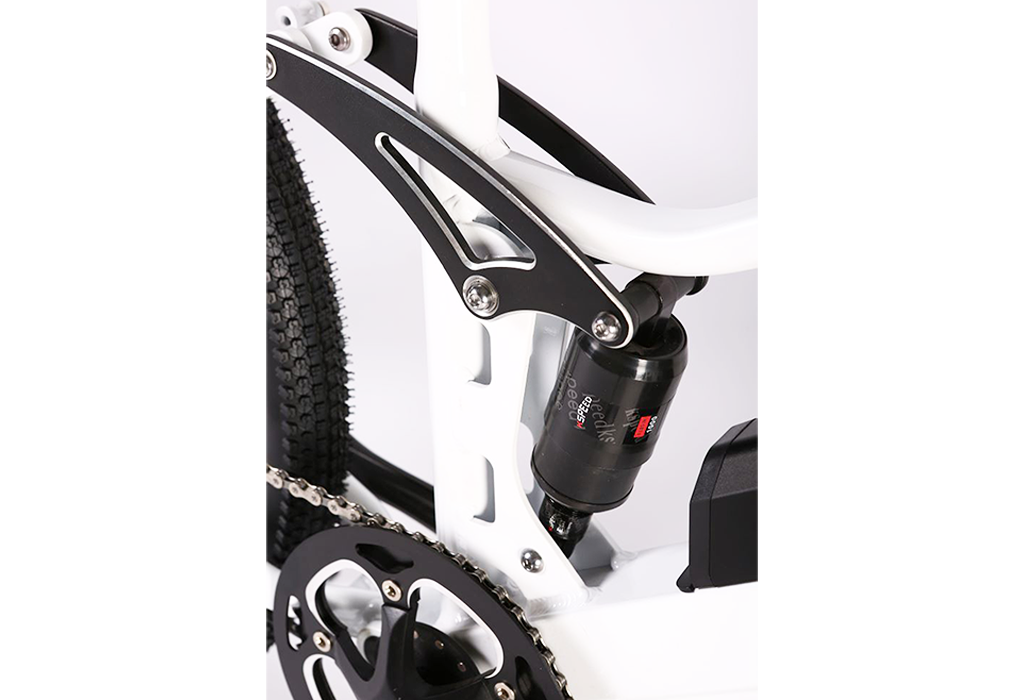

The Sedona 48 Volt Lithium Powered Electric Mountain Bicycle is a Lithium Battery powered Electric Bicycle cranking out 500 Watts from the Bafang High Torque Zero Resistance Clutch Motor. This bike features a lightweight, compact lithium LiPo4 48 volt 10.4 Ah integrated battery pack providing a considerable amount of power greater than our 24 volt or 36-volt models. This bike comes with everything Aluminum - every bolt, every nut, every spoke. That means no rust! The 100% hand welded lightweight aluminum frame bicycle has Atlus Shimano 9-Speed Gears & Shifting System, Suntour XCT Front Suspension & KS Rear Shock Suspension, aluminum rims with quick release axle on the front, and a waterproof quick disconnect on the rear.

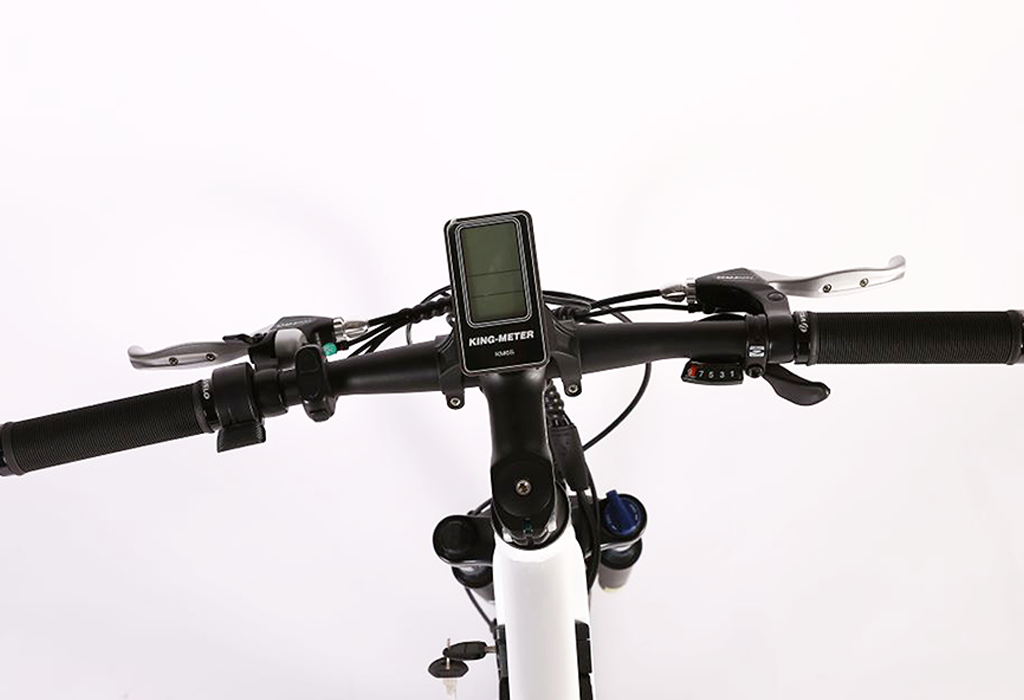

The Sedona comes equipped with the King Meter 5 Speed Smart Power Assist System (SPAS) with a USB Phone Charging Port. The electronics of the X-Treme Electric Bicycle are controller via rider input on the LCD screen attached to the handlebars. Smart PAS with 5 speeds will enable the bike to operate nearly twice as efficient as a non-smart assist e-bike because you select the power consumption (speed controls 1-5 setting) on the LCD during your ride. This feature will allow your Sedona 48 Volt to possibly reach or exceed 70+ miles per charge when using low SPAS while always pedal assisting on flat ground under perfect conditions with a lightweight rider. The LCD also indicates Speed, Distance, and Battery Life.

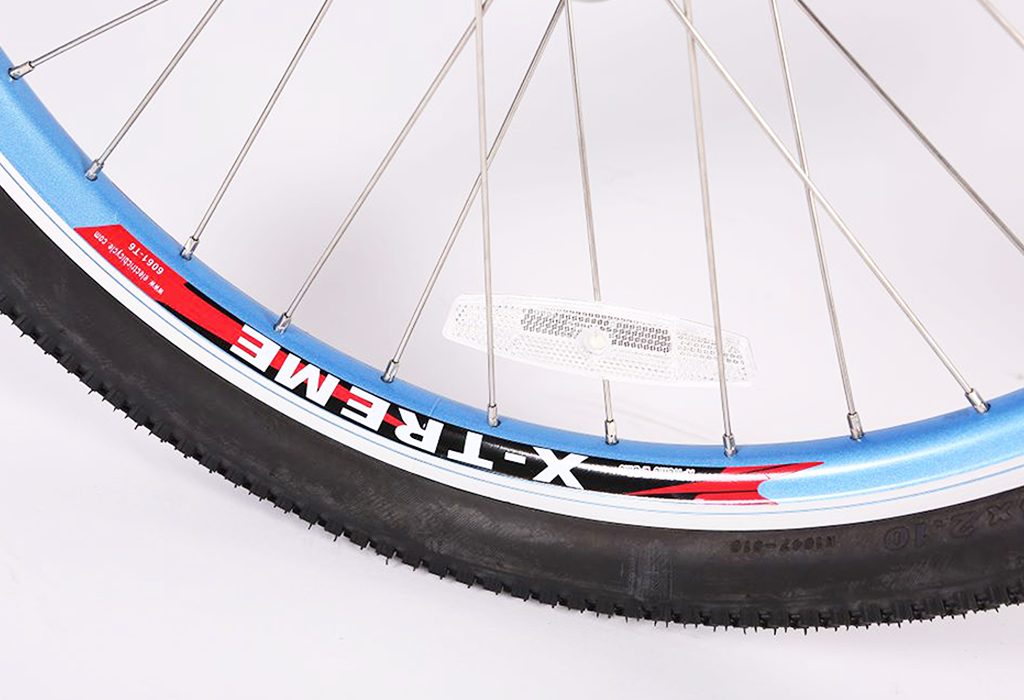

Tire Size:

Kenda Mountain Tire & Tube - 26 x 2.10 Inch on Aluminum Wheels

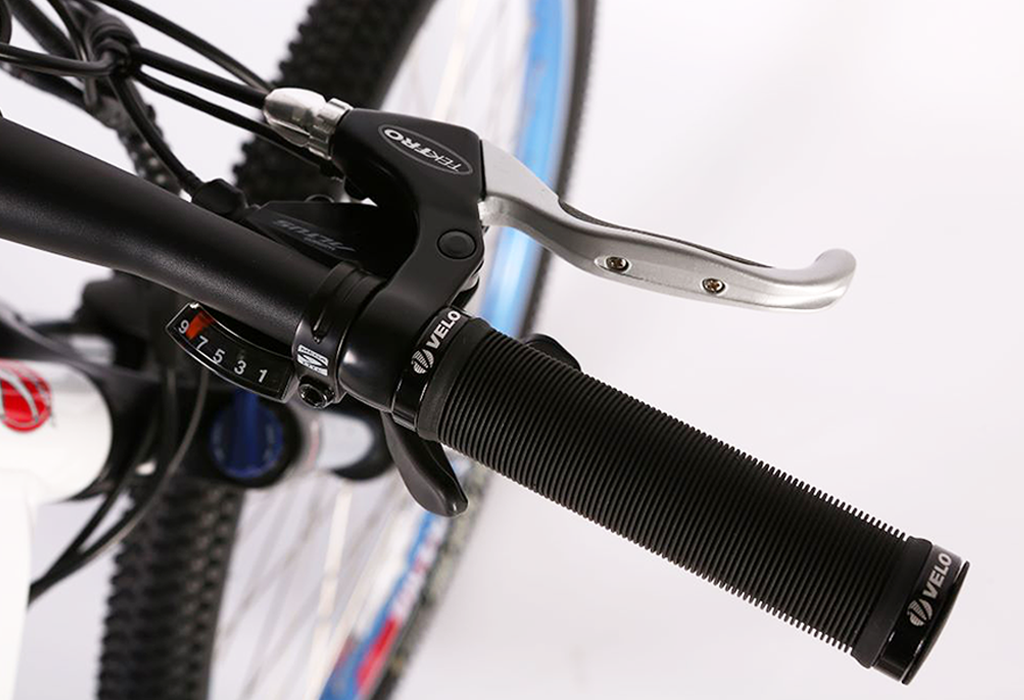

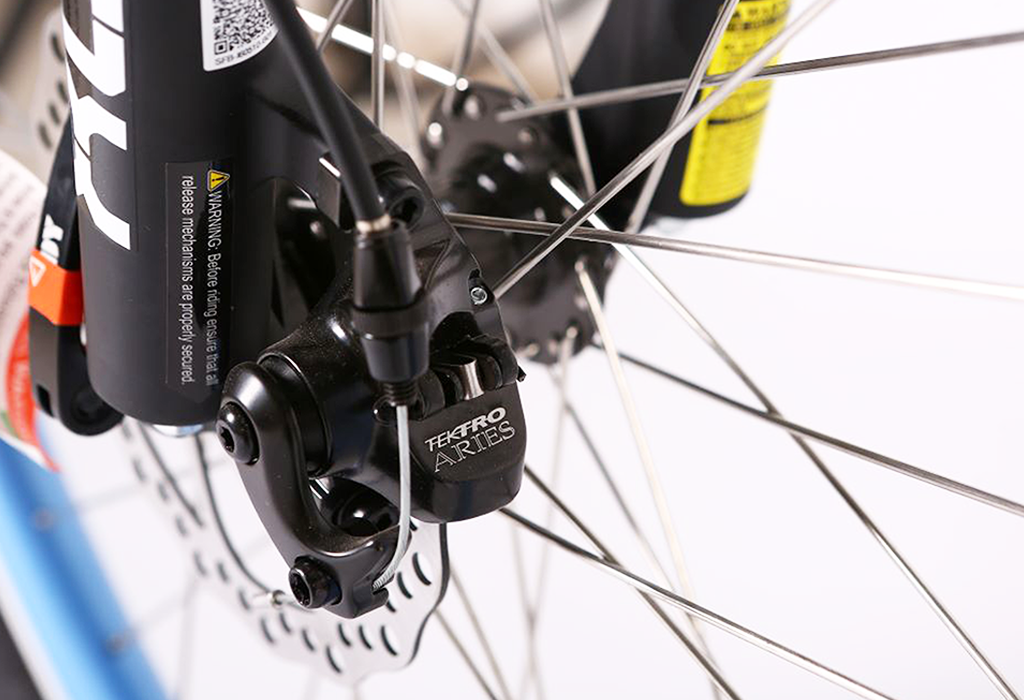

Braking System:

Tektro Disk Brakes

Pedals:

Wellgo Aluminum Pedal Set

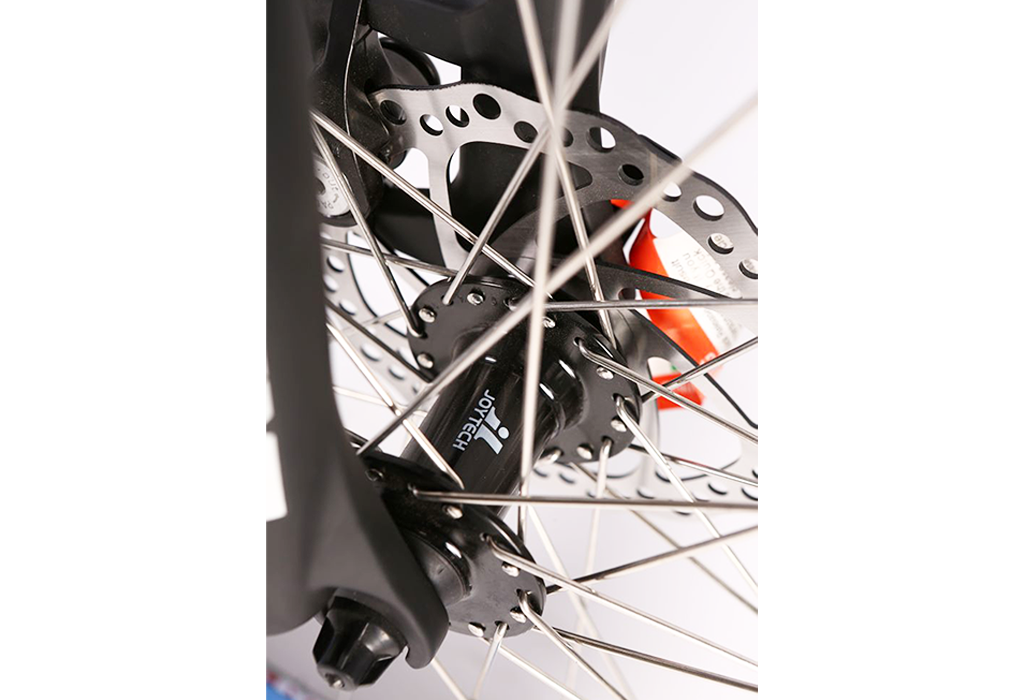

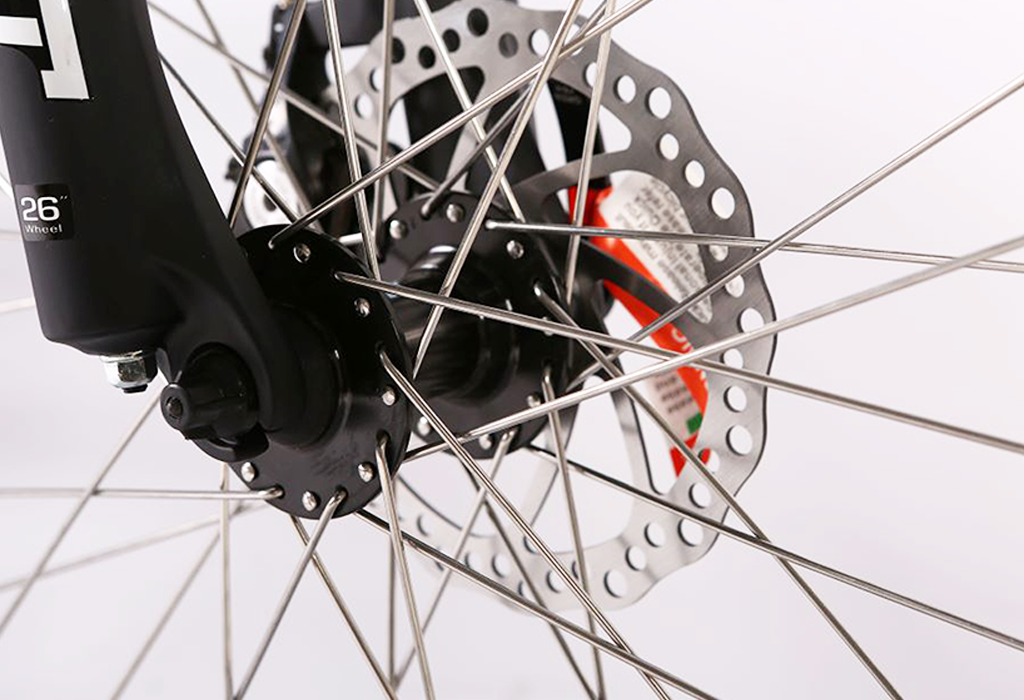

Front Wheel:

Joytech Quick Release Hub

Cargo Rack

Aluminum Rear Carry Rack

Frame Type/Size

6061-T6 Temper Aluminum Alloy - Very Lightweight- Step Through

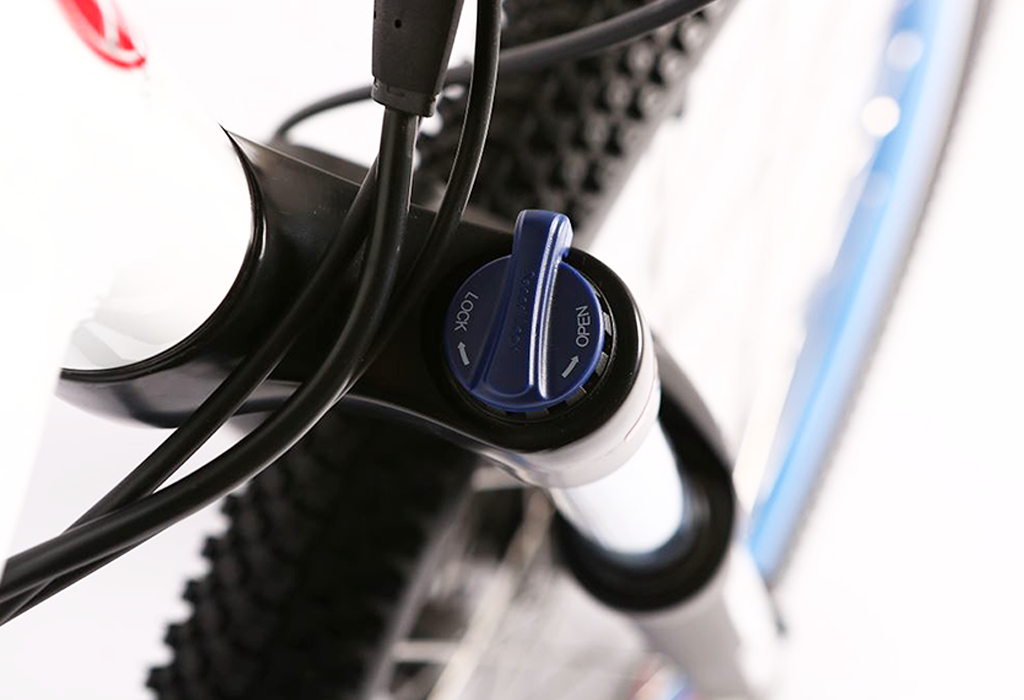

Forks:

Suntour® XCT Hydraulic Front Forks

Suspension:

Suntour® XCT Hydraulic Front Forks

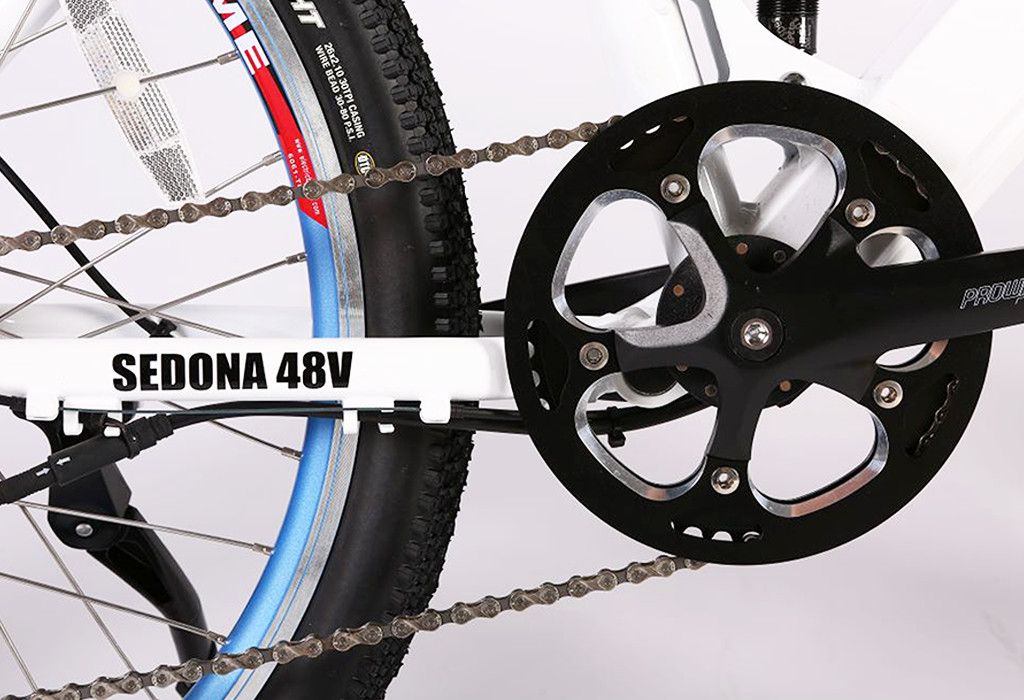

Front Sprocket:

Aluminum Alloy Sprocket

Derailleur:

Shimano® 9-Speed Atlus Gears & Shifter

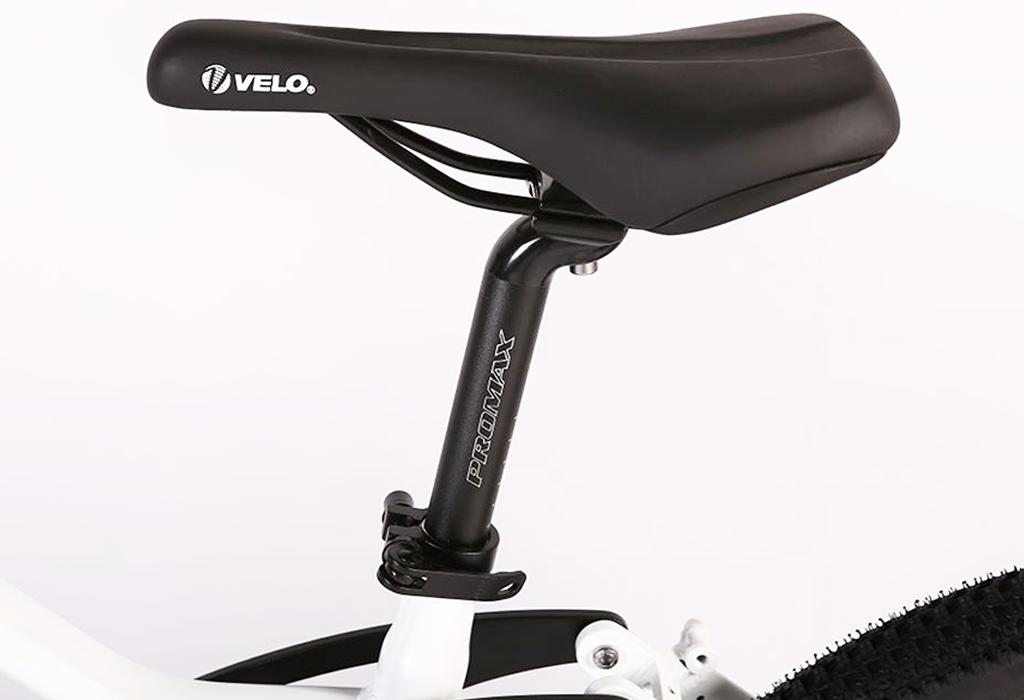

Seat & Post:

Aluminum Alloy Adjustable Seat Post & Velo Mountain Bike Seat

Quick Release:

Front & Rear Wheels Have Quick Release Axles - Flip Lever

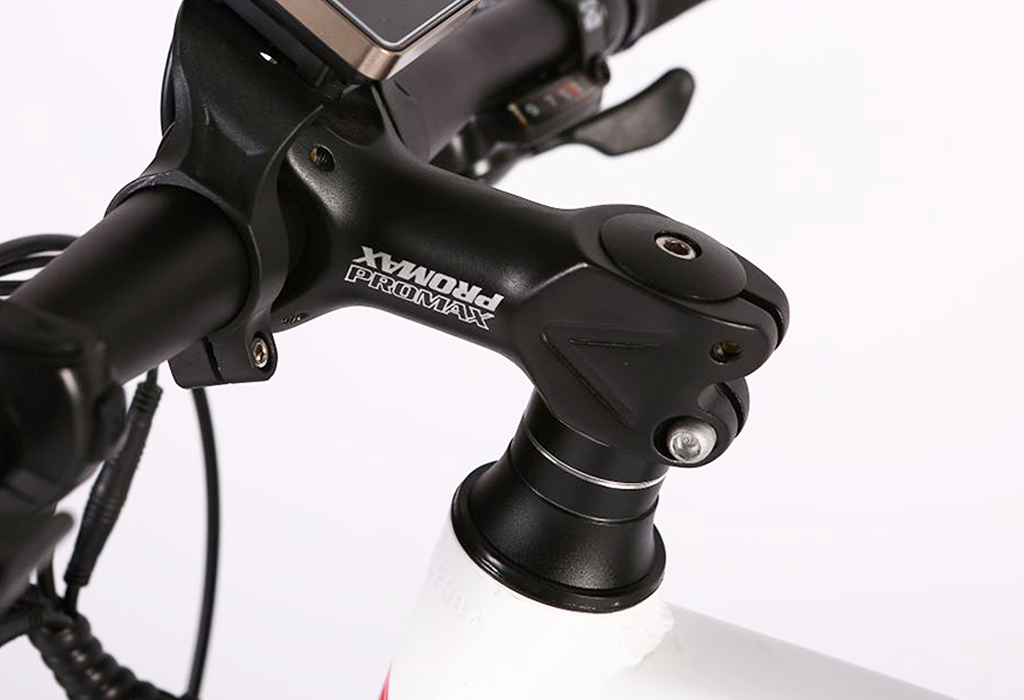

Gooseneck:

Aluminum VP

Handle Bars:

Aluminum Alloy Mountain Bike Handle Bars

Accessories:

Drink Holder On Handle Bars Included.

Bicycle Measurements:

Max Seat Height = 37.75" Inches / Min Seat Height = 29.5" Inches / Handlebar Height = 37.75" Inches

Carton Size (L x W x H):

55 x 9 x 28

Bicycle In Box Weight:

69 lbs

Bicycle Weight:

59.5 lbs

Suggested Max Weight:

350 lbs.

Notes:

*depends on rider weight & terrain Distance obtainable when using SPAS

Motor:

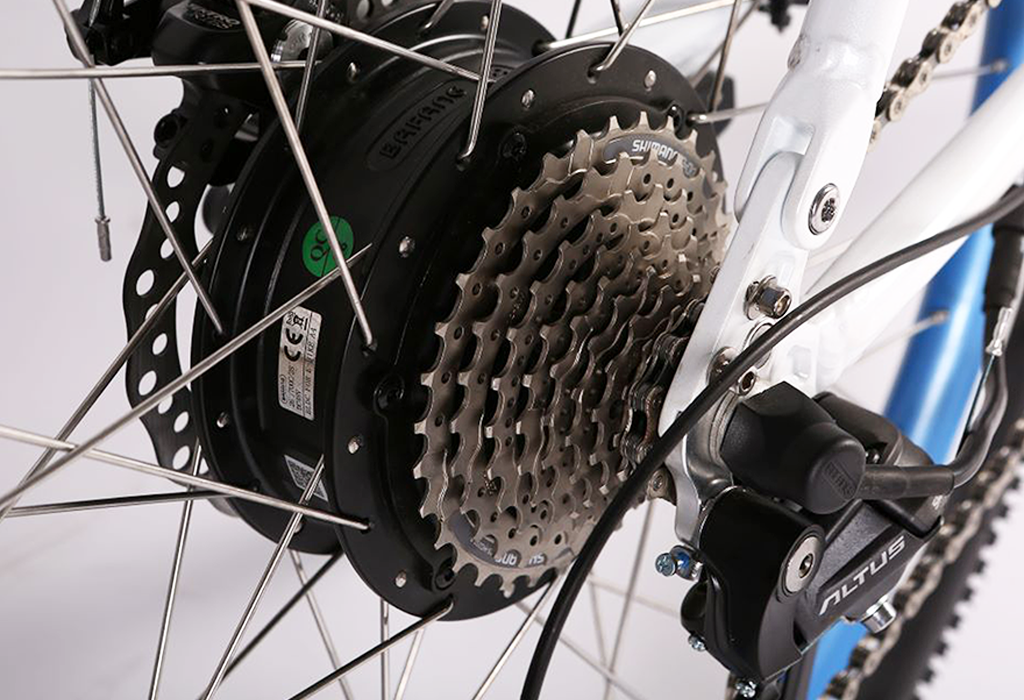

Bafang 500 Watt Zero Resistance Rear Hub Motor With Clutch

Battery:

48 Volt LiPo4 Lithium (lightweight)

Distance:

Up To 70 Miles Range Using Low PAS & Flat Terrain While Pedal Assisting

Speed:

25 MPH

Charger:

48 Volt UL Certified Charger (Charging Time +/- 3 Hours)

Amps:

10.4 Integrated Lithium Battery

Volts

48 Volts

Drive System:

Chain Driven by Rear Hub Motor or Pedal Power

Controller

48 Volt 15 Amp Sealed Smart Controller

Throttle Type

Variable Speed Thumb Throttle - SPAS Power Assisted - Pedal Power

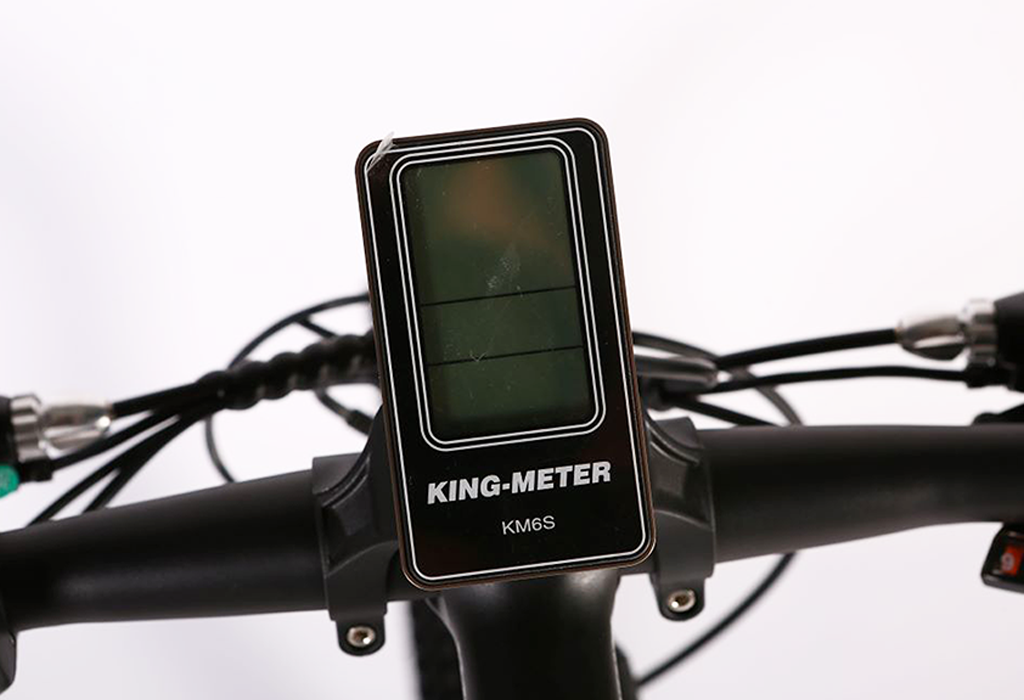

LCD Display

King Meter LCD Smart PAS Digital System With USB Phone Charging Port

Head Light

Yes, included as free accessory add on - Battery Operated Snap-On LED (Not covered under warranty)
