Electric skateboard V3

Cruising Range:
Battery Size :

Battery   9.3-11.2 miles (15-18km)

Samsung battery  7.0AH: 12-14 miles (19.2)

Battery   10.0AH: 20-25 miles (33-40km)

Speed Mode:

1.Slow mode/ Beginners :

Speed: 8 MPH


2.Medium mode / Intermediate :

Speed: 12 MPH


3.Fast mode / Advanced :

Speed: 19 MPH

The maximum Climb Angle:

16 °

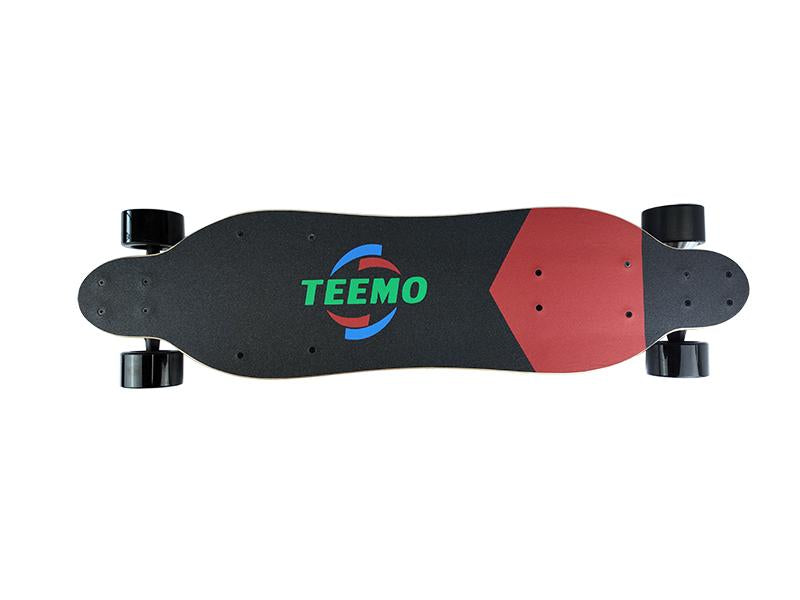

Skateboard deck:

Size: 38x9.4inches (97x24cm)
Material: 7-layer Canadian Maple+1 layer of bamboo fiber
Maximum load: 330 pounds (150 kg)

Net weight: 16.09lb (7.3kg

The recommended Rider weight should be under 264 pounds (120 kg)

Front wheel Bearing:
German FAG bearing

Material:

PU solid tire

Motors:

90mm (3.54 in) diameter hub motor

Rated output power:   450W motors

PU on the motor is replaceable

ESC:

 Electronic Speed Control:

Controller: Single drive sine waves smooths the ride
Regenerative brake: Recovers energy when braking and reduces energy consumption
Adapters and chargers:

Input: 100-240v 2.5a

Remote control:
Bluetooth wireless remote control
